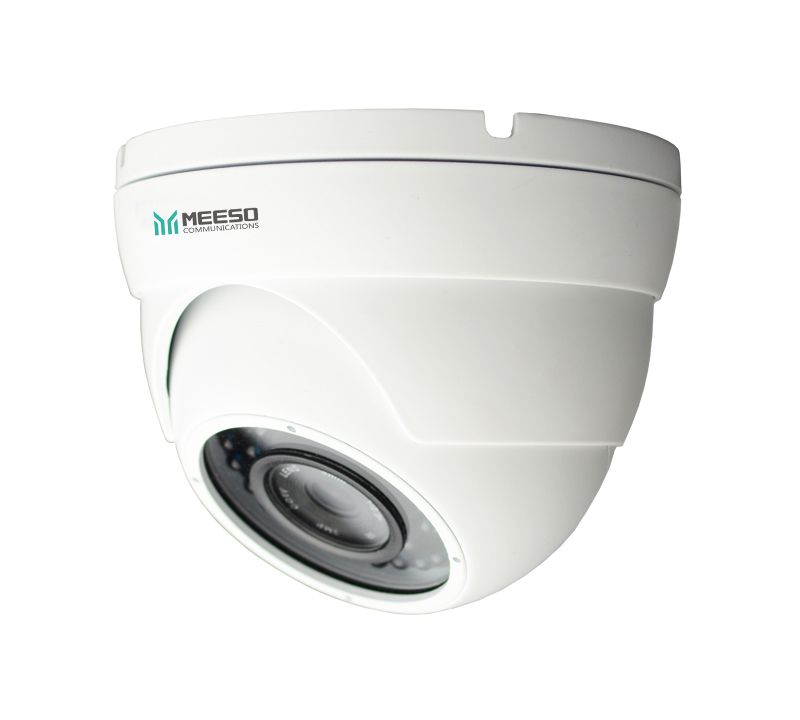

MS-TACD2256A

MS-TACD2256A

  • Meeso offers you a complete IP solution, from camera to recorder. We also offer reliable accessories for you to complete the whole system.
  • 28 strict standard for quality control management, from engineering, trial production to massive production.
  • 100% 48 hours of aging test before delivery, when you have the product in hand, it's 100% taken good care of.

Product IntroductionSpecificationsAccessoriesRelevant DataDownload


★  TVI/CVI/AHD/Analog 4 in 1
★  Transfer HD video over 75-3 or similar cable at least 500m
★  30m night vision
★  Varifocal lens 2.8-12mm
★  30FPS @ 1080P
★  3DNR for the higher definition and the better image restitutor
★  Realtime video without compression

★  3-axis adjustable bracket adapt to ceilling mount and wall mount
★  AWBAEAGCBLC3D-NR
★  Dual ICR filters Day/night mode auto switching
★  Backward-compatible D1/960H OSD adjustable
★  Totally Plug and Play
★  DC12V

Camera
Image Sensor Sony IMX323 Progressive Scan CMOS
Processor NVP2441
Max Pixels 2.0MP 1920*1080
frame Rate 30fps
Min Illumination 0.1lux@F1.2 AGC on 0 lux with IR on
Lens 2.8-12mm 2MP
LED 36pcs LEDs IR Range 30m
IR-Cut YES
OSD Optional
Shutter Speed 1/25 ~ 1/100000 second
S/N Ratio >58db
Video
Scanning system Progressive
Synchronization Internal
Noise Reduction 3D-NR
BLC Auto
White Balance Auto
Gain Control Auto
Interface
Video Output 1Vp-p 75ohm BNC
Transmission 500 meters(75-3)
Audio Output -
General
Bracket 3-axis manual adjustable bracket
Installing Type Ceiling Mount Wall Mount
Housing Material metal
Ingress Protection -
Working Temperature -20℃ ~ 60℃
Humidity <95%
Weight 500g
Size
