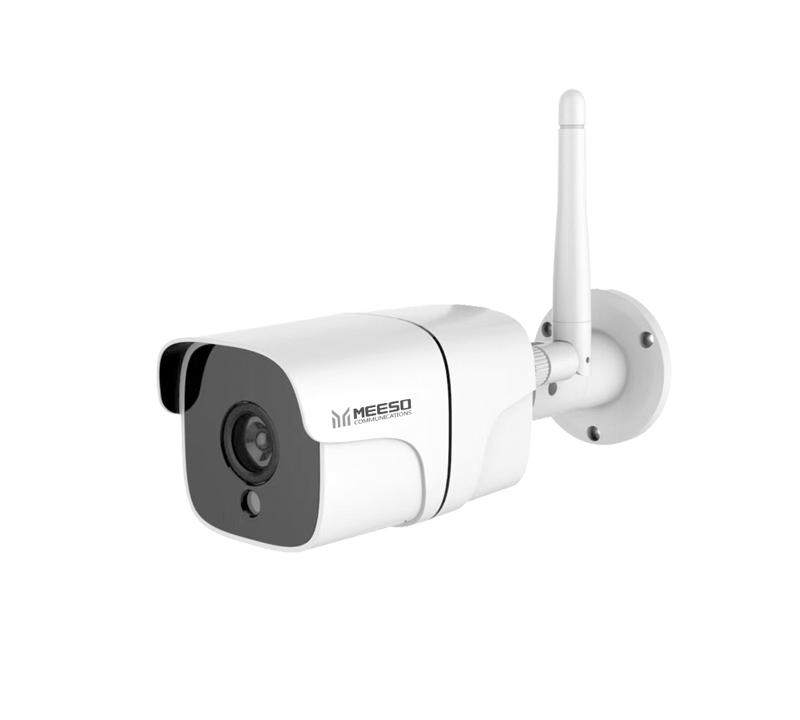

2MP H.265 IPC

current position:Meeso Official > Products > H.265 Analytic IPC > 2MP H.265 IPC >



  • Meeso offers you a complete IP solution, from camera to recorder. We also offer reliable accessories for you to complete the whole system.
  • 28 strict standard for quality control management, from engineering, trial production to massive production.
  • 100% 48 hours of aging test before delivery, when you have the product in hand, it's 100% taken good care of.

Product IntroductionSpecificationsAccessoriesRelevant DataDownload

★  1/2.7" SC2235 CMOS sensor

★  Support Meeso AI function: Crossline Detection Intruder Area Detection object Detention object Missing.

★  Main stream 1920*1080@25fps; Sub stream D1@25fps;

★  Support ONVIF; Support Third-party NVR;

★  Support for mobile video surveillance(iOS android);

★  Support Web CMS Mobile App ;

★  Support cloud service network penetration alarm information pushed to phone etc

Image Sensor  1/2.7" SC2235 Progressive Scan CMOS
Processor Hisilicon 3516C V300
Resolution 2.0MP 1920*1080
frame Rate 25fps
Lens 3.6mm Fixed Lens
IR Led 18pcs 30m Night Vision
Min Illumination 0.07Lux @ (F1.2 AGC ON) 0 Lux with IR
Shutter Time 1/25 ~ 1/100000 second
Encode H.265+ Compression
Stream Main Stream 2Mbps~6Mbps Sub Stream 512kbps~2.5Mbps (adjustable)
Image Capture JPEG format (picture definition is same with video)
Noice Reduction 3D-NR
Audio Buildin Microphone G.711A 64Kbps
Alarm I/O Optional
Ethernet Adaptive 10/100M RJ45
WiFi/3G Yes 2.4G
PoE(IEEE802.3af) -
Water Mark Yes
Alarm Event Intelligent Analytics Motion Detect Video Loss Video Cover Network Abnormal
Recording Mode Manual Schedule Motion Detect Network Abnormal

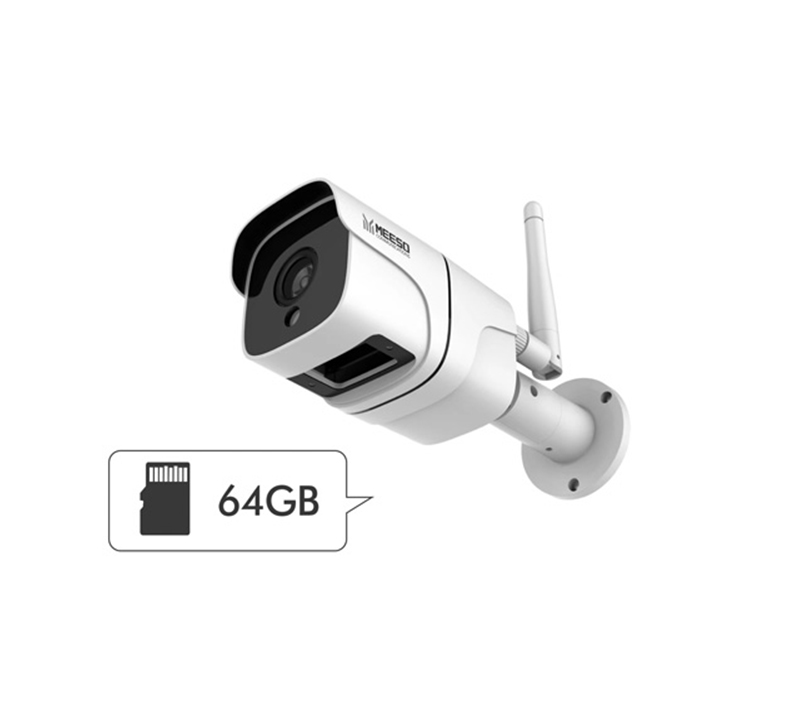

SD Slot Yes Max 64GB
RS485 -
Audio/Alarm Opional
Operating Conditions -30℃ ~ 60℃
Power Supply 12V DC
Weather Proof IP66
IR Range 30m
Weight 500g/pc
