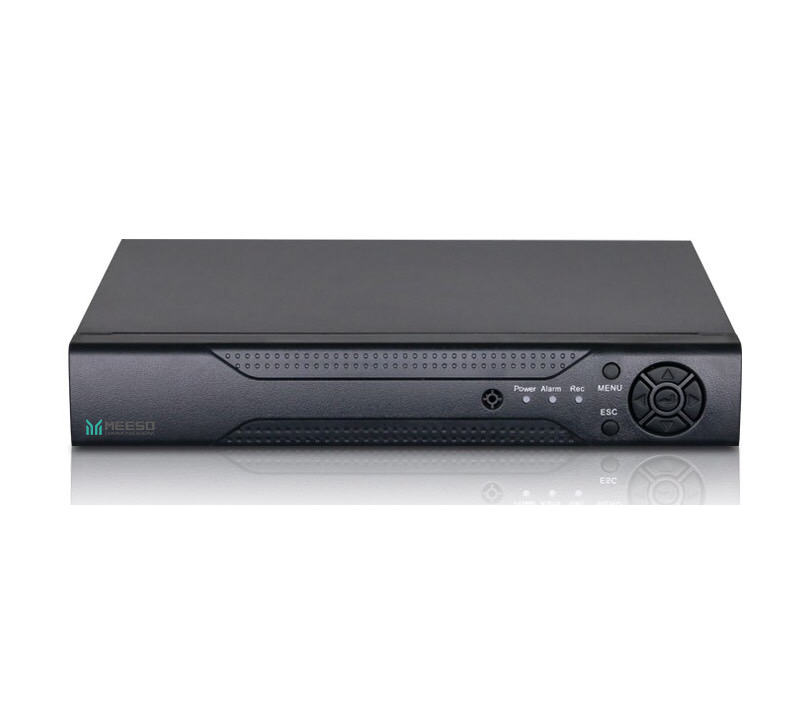

H.265 Analytic NVR

current position:Meeso Official > Products > H.265 Analytic NVR >



  • Meeso offers you a complete IP solution, from camera to recorder. We also offer reliable accessories for you to complete the whole system.
  • 28 strict standard for quality control management, from engineering, trial production to massive production.
  • 100% 48 hours of aging test before delivery, when you have the product in hand, it's 100% taken good care of.

Product IntroductionSpecificationsAccessoriesRelevant DataDownload

★  8 channel PoE output
★  8*1080P Recording
★  H.265 Video compression format high compression ratio
★  Up to 2 channels synchronously playback
★  Support VGA HDMI 1080P output;
★  Support web CMS center platform management software
★  Pushed to your phone and other functions;
★  Support multiple network services (support DHCP FTP DNS DDNS NTP UPNP EMAIL 3G WIFI IP searches Alarm Center etc.);
★  Visit remotely built-in ARSP achieve start up by one step.

CPU  Hisilicon
OS embedded Linux
System Resources Simultaneous multi-channel real-time recording playback network operation USB backup
Video Input 8*1080P
Video Standards PAL(625TVL50f/s); NTSC(525TVL60f/s)
Video Compression H.265/H.264
Display Quality Max: 1080P
Playback Quality 1080P
Decode 2*1080P
Motion Detection Yes
Recording Mode Manual>Alarm>Video Detection>Continuous
Local Playback 2*1080P
Search Mode By time Event By chanel
Record Storage HDD network
Backup Mode Network backup USB hard disk USB burner SATA burner
Audio Compression G.711A
Intercom Unsupport
Video Output 1ch HDMI HD output(Customized VGA interface)
Audio I/O 0/1
Alarm I/O 0/0
Network Interface 1*RJ45 10M/100M Adaptive Ethernet port
Hard Disk 1 SATA(Up to 8TB for each disk)
Ethernet Adaptive 10/100M RJ45
WiFi/3G Optional
PoE(IEEE802.3af) 8ch standard PoE output
Water Mark Yes
Alarm Event Motion Detect Video Loss Video Cover Network Abnormal
Recording Mode Manual Schedule Motion Detect Network Abnormal
PTZ Control Control PTZ device by network
Onvif Support
Weight Around 4kg
Power DC52V2.5A
Size 255*43*218mm
