H.265 Analytic NVR
current position：Meeso Official > Products > H.265 Analytic NVR >

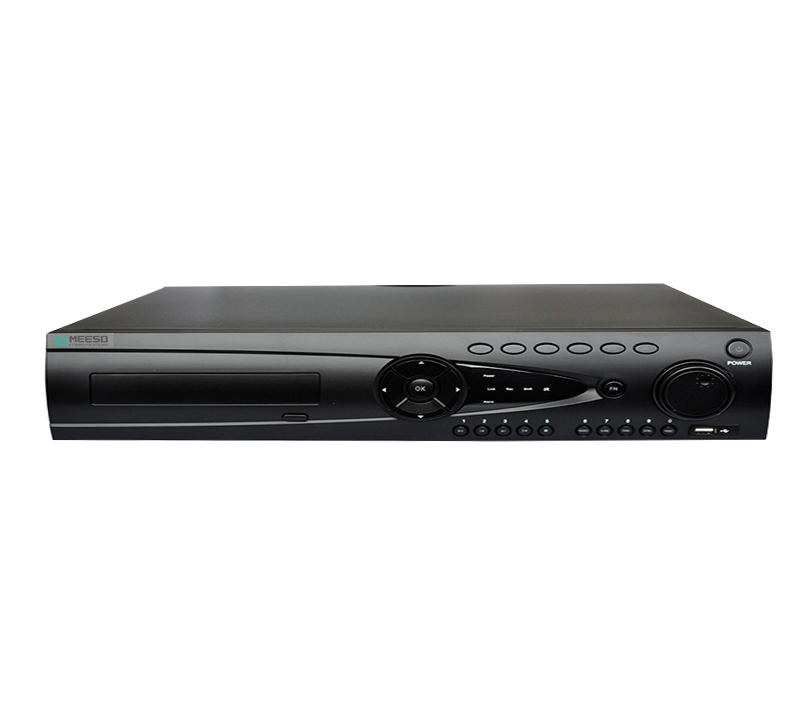

MS-NVR8432
MS-NVR8432
-
Meeso offers you a complete IP solution, from camera to recorder. We also offer reliable accessories for you to complete the whole system.
-
28 strict standard for quality control management, from engineering, trial production to massive production.
-
100% 48 hours of aging test before delivery, when you have the product in hand, it's 100% taken good care of.
Product IntroductionSpecificationsAccessoriesRelevant DataDownload
★ 32ch 5MP Intelligent NVR
★ 16*4k/32*5MP Recording
★ H.265 Video compression format high compression ratio
★ Up to 9 channels synchronously playback
★ Support VGA HDMI 4K output;
★ Support web CMS center platform management software
★ Pushed to your phone and other functions;
★ Support multiple network services (support DHCP FTP DNS DDNS NTP UPNP EMAIL 3G WIFI IP searches Alarm Center etc.);
★ Visit remotely built-in ARSP achieve start up by one step.
| System | |
| CPU | Hisilicon |
| OS |
em |
| System Resources | Simultaneous multi-channel real-time recording playback network operation USB backup |
| Video Input | 32*5MP/16*4K |
| Video Standards | PAL(625TVL50f/s); NTSC(525TVL60f/s) |
| Video Compression | H.265/H.264 |
| Display Quality | Max: 4K |
| Playback Quality | 5M |
| Decode | 4*5M/4*4M/9*1080P |
| Motion Detection | Yes |
| Recording Mode | Manual>Alarm>Video Detection>Continuous |
| Local Playback | 4*5M/4*4M/9*1080P |
| Search Mode | By time Event By chanel |
| Record Storage | HDD network |
| Backup Mode | Network backup USB hard disk USB burner SATA burner |
| Audio | |
| Audio Compression | G.711A |
| Intercom | Unsupport |
| Interface | |
| Video Output | 1ch HDMI HD output(Customized VGA interface) |
| Audio I/O | 0/1 |
| Alarm I/O | 0/0 |
| Network Interface | 1*RJ45 10M/100M Adaptive Ethernet port |
| Hard Disk | 8 SATA(Up to 10TB for each disk) |
| Network | |
| Ethernet | Adaptive 10/100M RJ45 |
| WiFi/3G | Optional |
| PoE(IEEE802.3af) | NA |
| Water Mark | Yes |
| Alarm Event | Motion Detect Video Loss Video Cover Network Abnormal |
| Recording Mode | Manual Schedule Motion Detect Network Abnormal |
| General | |
| PTZ Control | Control PTZ device by network |
| Onvif | Support |
| Weight | Around 11kg |
| Power | DC52V2.5A |
| Size |
443*92*400mm |
